Description

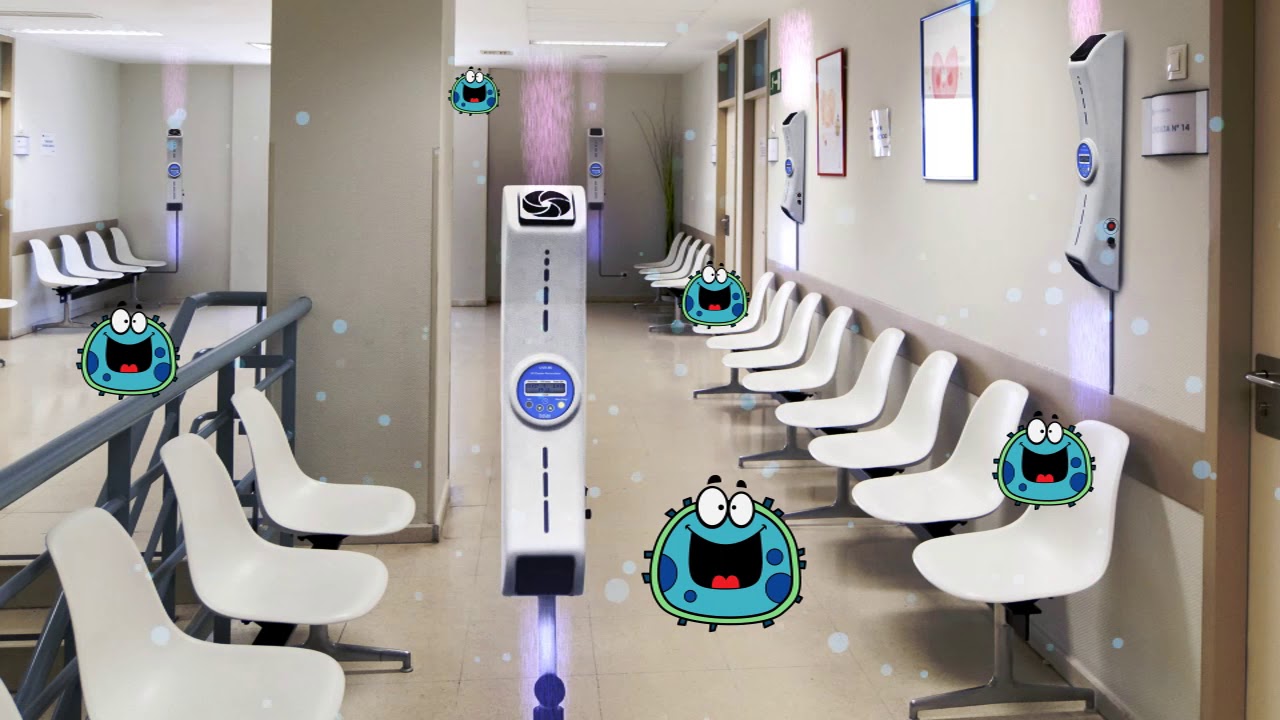

UVR-M is ideal for air disinfection in hospitals (especially in outpatient departments, operating rooms, emergency rooms, delivery rooms etc.), kindergartens, research laboratories, veterinary clinics
The devices provide complete protection from direct ultraviolet radiation.
Recirculators fixation:

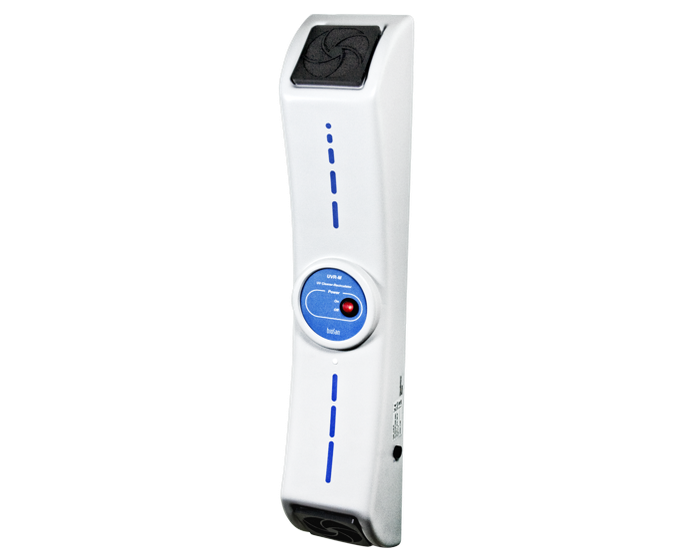

- Convenient fixation on walls (standard)

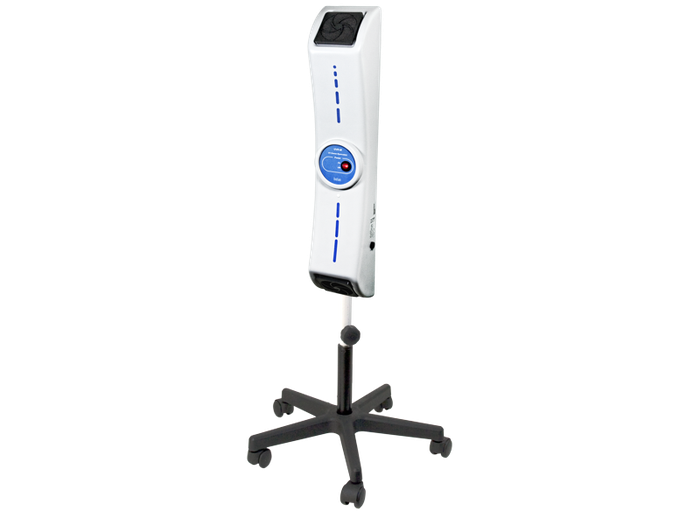

- Mounting on a movable tripod (optional)
Specification
| UV radiation source: | 1 lamp - 25W Bactericidal, TUV25WG13 UV-C |
|---|---|
| UV radiation level | 18 mW / cm2 / sec |
| Air-flow productivity | 14 m3/hour |
| Full user protection from direct UV light | + |
| UV lamp operation indicator | + |
| Overall dimensions (W×D×H) | 110 x 135 x 660 mm |
| Weight | 3.4 kg |
| Power consumption (230V / 120 V) | 125 VA (540 mA) / 160 VA (1.3 A) |
| Nominal operating voltage | 230 V, 50 Hz or 120 V, 60 Hz |
| --- | --- |
| Tripod UVR-S dimensions | 600 x 600 x ~1100 mm |
-
Does tripod go together with the insturment in the original set?
No, but it can be ordered separately.
What are the main application areas for UVR-M?
Recirculators are effective against common airborne diseases by disinfecting the air and efficiently destroying disease-causing agents (viruses, microorganisms) by UV radiation. UV Air Recirculators are ideal for air disinfection in hospitals (outpatient departments, operating rooms, emergency rooms, delivery rooms etc.), kindergartens, research laboratories, veterinary clinics, schools, offices, etc.
How long is a service life of a UV-lamp?
Average lifetime of UV lamps supplied is 9000 h. That is equivalent to 1 year of non-stop use everyday for 24h
How big room capacity can be cleaned by one UV-recirculator?
The number of UV recirculators required for 90% efficiency of room air decontamination (in 1 hour):
